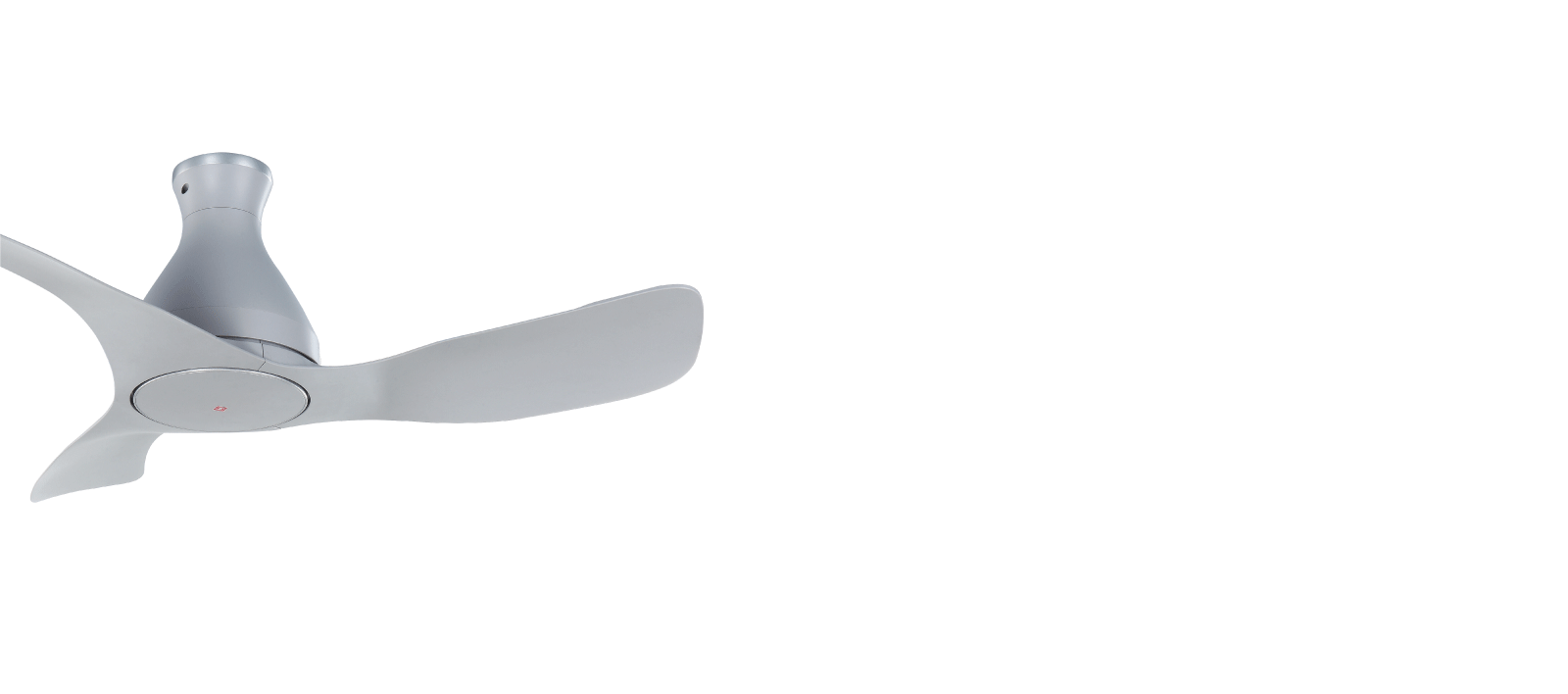

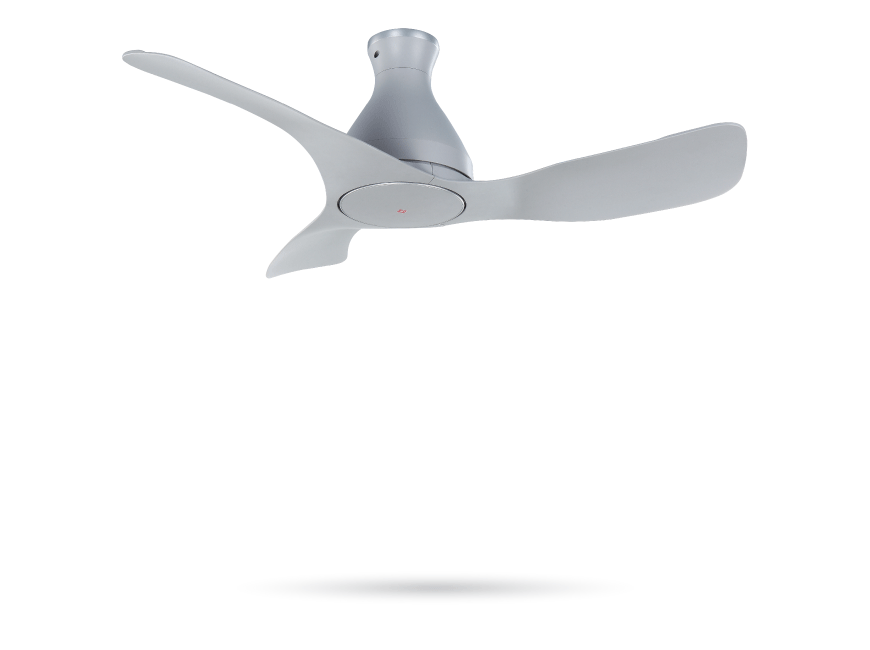

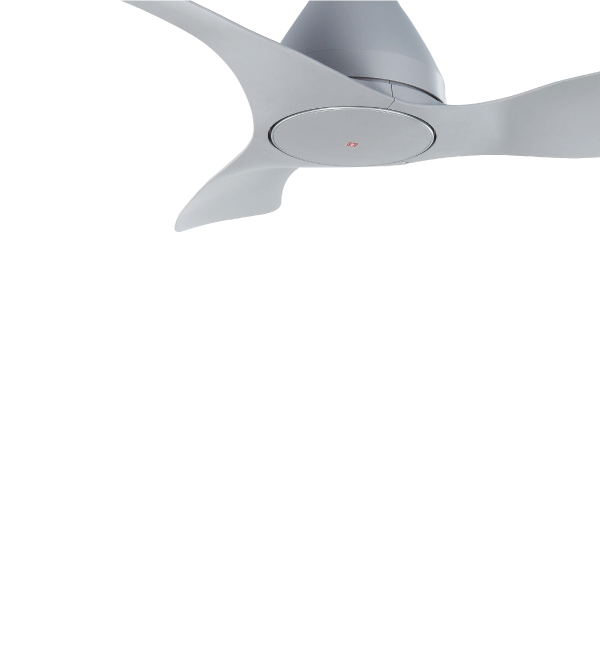

Nodoka JR
K12YC (120cm/ 48”)
RCP: RM936.00 (EM) RCP: RM929.00 (WM)
Nodoka Series Application Instruction
(Model: K12YC, K12UC, K15YC, K15UC)
Nodoka Series Function Introduction
(model: K12YC, K12UC, K15YC and K15UC)
OVERVIEW
OVERVIEW
SPECIFICATION
MODEL
K12YC
COLOR
MATTE GREY
NO. OF BLADE
3
DIMENSION
48”/120CM
ENERGY STAR RATING
RPM Forward (LOW)
55
RPM Forward (HIGH)
170
RPM Reverse (LOW)
55
RPM Reverse (HIGH)
170
Air Delivery (m3/min)
200
Motor W (LOW)
3
Motor W (HIGH)
31
Motor Type
DC
NOISE LEVEL (dB)
41
NETT WEIGHT (kg)
4.9

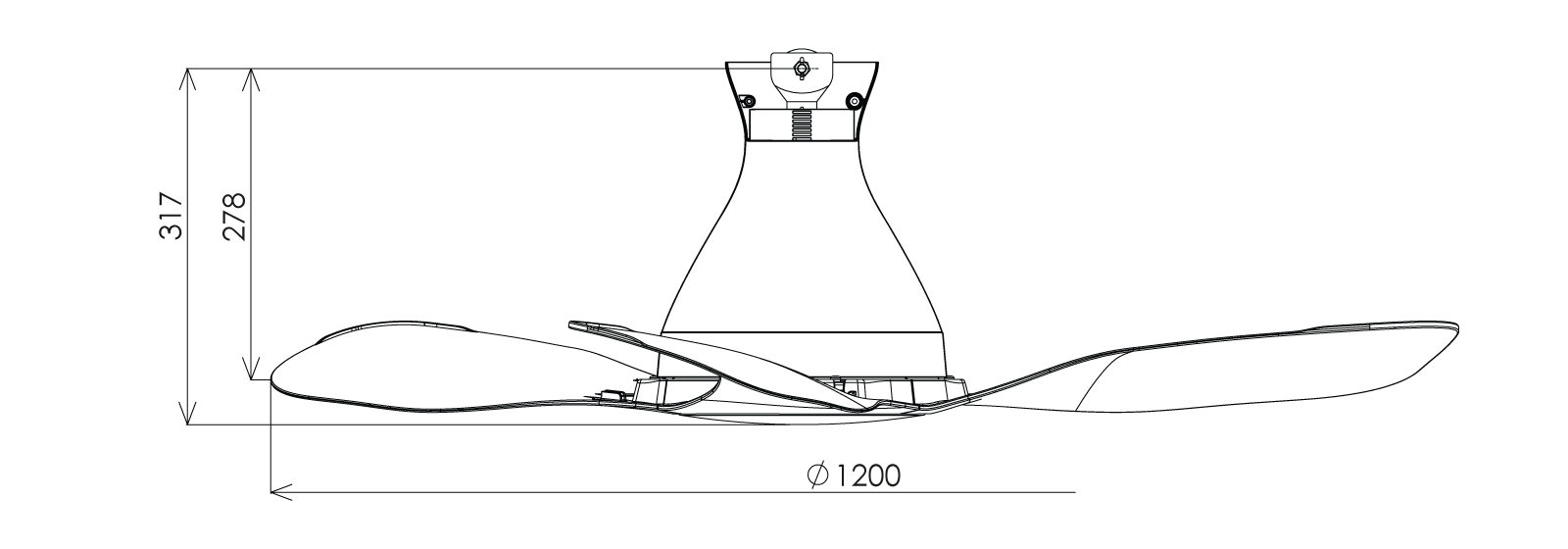

DIMENSION (MM)
Mobile Application Control
Requires the App to work with smart devices with Android 6 and above, or iOS 12 and above
There is no guarantee that the App will work well if the Operating System is below Android 6 or iOS 12
1 ceiling fan can be registered by 4 user accounts
1 user account can register and control 8 ceiling fan simultaneously
Android App on
Google Play
Download on the
App Store
Click for the full Application Instruction
